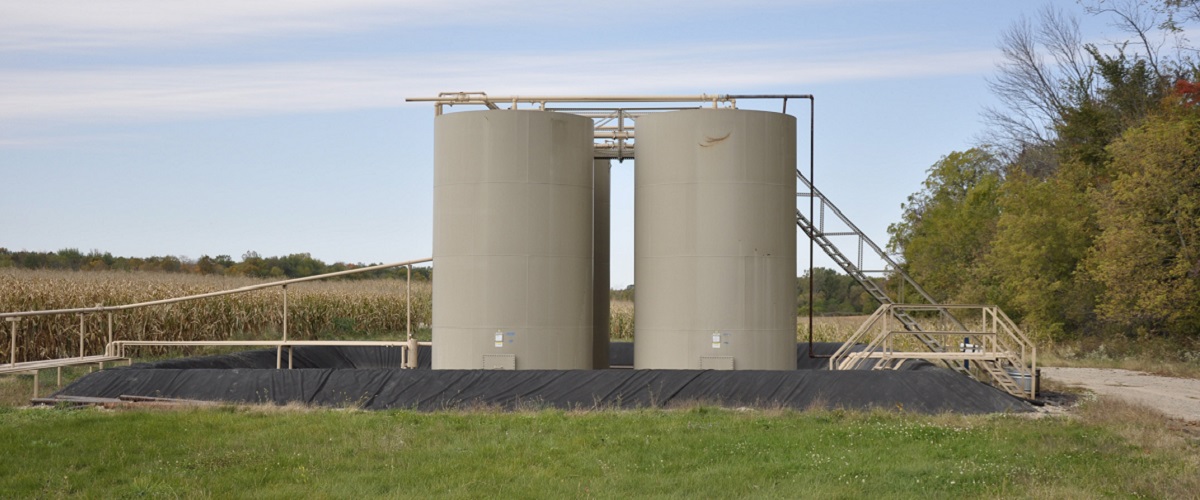

Plastatech Tech 5 geomembrane helps contain chemicals and other pollutants commonly found in landfills, reservoirs, chemical processing plants, refineries, manufacturing facilities and water treatment operations. It is reinforced with a high-tenacity, anti-wicking, polyester scrim that provides exceptional dimensional stability, puncture strength and durability. Our proprietary process delivers a cohesive bond between the high-thread-count scrim and the films, creating a non-separable, long-lasting adhesion that will not delaminate.
Tech 5 is available in black 30 mil thickness.
Suitable applications include:
| Thickness | 30 MILS |
|---|---|
| Width | 64.25in. ± 0.25in. |
| Length | 150 yd. |
| Roll Area | 2,400 sq. ft. |
| Approx. Weight | 580 lb. |
| TEST METHOD | UNITS | 30 MILS | |
|---|---|---|---|
| Fabric Weight | ASTM D3776 | oz/yd2 | 4.7 |
| Finished Weight | ASTM D751 | oz/yd2 | 29.0 |
| Thickness | ASTM D751 | mils | 35.0 ± 5% |
| Breaking Strength | ASTM D751 | lbf/in. | 450 MD/360 CMD |
| Tear Strength | ASTM D4533 | lbf | 90 MD/70 CMD |
|
Low Temperature Resistance |
ASTM D2136 1/8 - Inch Mandrel |
-25oF |
Pass |
| Dimensional Stability | ASTM D1204 | % | -0.7 MD/0.03 CMD |
| Hydrostatic Resistance | ASTM D751 Procedure A | psi | >660 |
| Blocking Resistance | ASTM D751 | 180oF (#2 rating) | Pass |
| Adhesion | ASTM D751 | lbf/in. | Not separable |
| Adhesion Heat-Welded Seam | ASTM D751 | lbf/in. | >90 |
| Bonded Seam Strength | ASTM D751 | lbf | 290 |
|
Abrasion Resistance |
ASTM D3389 H-18 Wheel 1 kg Load |
50mg/100 cycles | Pass |
| 2,000 cycles | Pass | ||
| Weathering Resistance | QUV | hours | 11,000 |
| Water Extraction | ASTM D3083 | % | <0.25 |
| Wicking | in. | Pass | |
| Bursting Strength | ASTM D751 | psi | 660 |
| Puncture Resistance | ASTM D4833 | lbf | >180 |
| Coefficient of Thermal Expansion | ASTM D696 | mm/mm oC | 1.3x10-5 MD |
| Tongue Tear | ASTM D751 | lbf | 150 MD/160 CMD |
| Plastatech PVC | CSPE-R | EIA-R | EPDM | EPDM-R | fPP | fPP-R | HDPE | LLDPE | LLDPE-R | WCPE | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material Specification Used | ASTM D7176 | ASTM D7465 | ASTM D7465 | ASTM D7613 | ASTM D7613 | GM-13 | GM-17 | GM-25 | |||
| UV/Ozone Resistant | Optional* | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Polymer Highly Flexible | Yes | Yes | Yes | NR | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Can be Thermally Seamed | Yes | Yes | Yes | Yes | NR | Yes | Yes | Yes | Yes | Yes | Yes |
| Can be Adhesively or Chemically Seamed | Yes | Yes | Yes | Yes | NR | Yes | Yes | Possible** | Possible** | Possible** | Yes |
| Good Multiaxial Performance | Yes | Possible** | Possible** | Yes | Yes | Yes | Yes | Possible** | Yes | Yes | Yes |
| Can be Seamed in Cold Temperatures | Yes | Yes | Yes | Possible** | Yes | Yes | Yes | Possible** | Possible** | Yes | Yes |
| Resistant to Installation Damage | Yes | NR | Yes | Yes | NR | Yes | Yes | Yes | Yes | NR | NA |
| Repaired in Service | Yes | Possible** | Yes | Yes | Yes | Yes | Yes | Possible** | Possible** | Possible** | Possible** |
| Prefabricated/Factory Panels available in 30> feet width | Yes | NR | NA | Possible** | NR | Possible** | Possible** | Yes | NR | Possible** | Possible** |
| Polymer Suitable for Exposed Use | Yes | Possible** | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Polymer Suitable for Buried Use | Yes | NR | Yes | Yes | NA | NR | NR | Possible** | Yes | NA | NA |
| Rating System Criteria*** | Yes | Possible** | NR= Not Recommended | NA= Not Applicable |
*Plastatech offers geomembranes that can be formulated to have UV/Ozone resistant properties.
**Possible ranking means - geomembrane usage may be possible with further investigation, proper thickness, proper formulation, and manucacturer's approval
***Based in industry data
